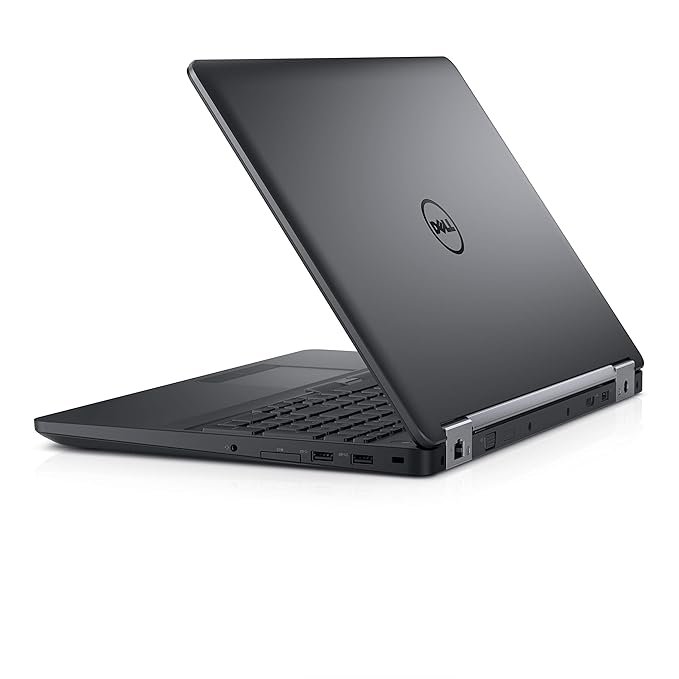

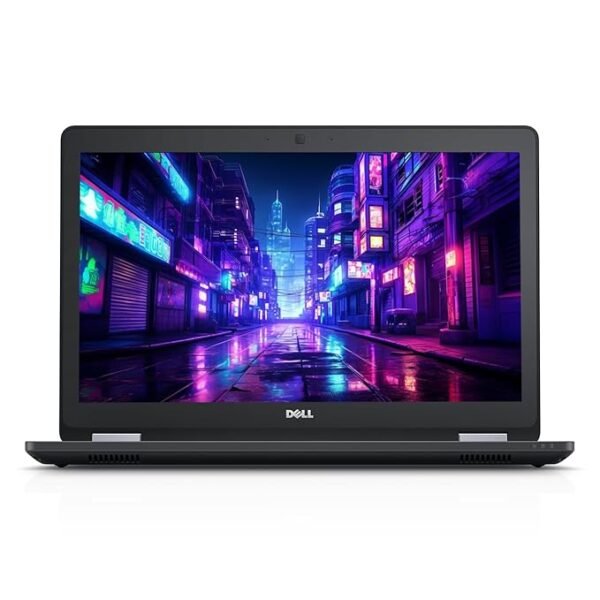

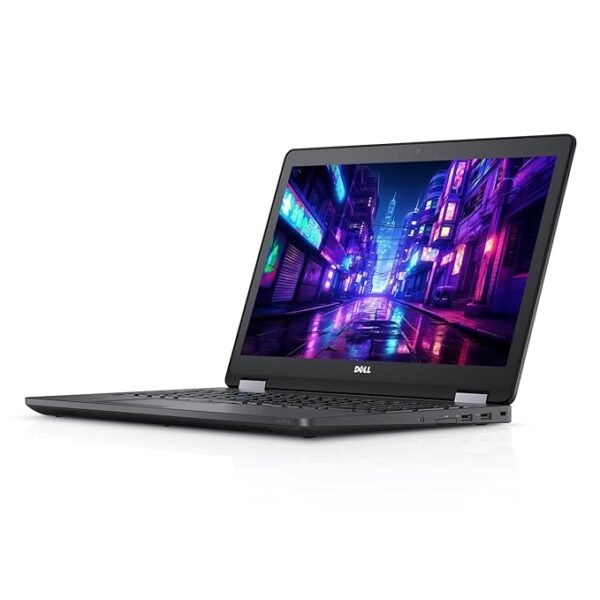

Dell Latitude E5570 – Model Overview

The Dell Latitude E5570 is a 15.6-inch business-class laptop designed for professionals who require reliable performance, robust security features, and durability in a portable package. It is well-suited for corporate environments, remote work, and mobile productivity.

Processor (CPU)

• Options: Intel Core  i7 (6th Generation Skylake)

• Cores/Threads: Typically 4 Cores / 8 Threads (varies by CPU)

• Base Clock: Around 2.3 GHz (varies by configuration)

• Turbo Boost: Up to 3.4 GHz (depending on CPU model)

• Cache: 6 MB to 8 MB

Graphics

• Integrated GPU: Intel HD Graphics 520

• Optional Dedicated GPU: NVIDIA GeForce 940MX (varies by model)

Memory (RAM)

• Standard Configuration: 8 GB DDR4 (can vary)

• Maximum Supported: Up to 32 GB DDR4 (2 x SODIMM slots)

Storage

• Storage Type: SATA HDD or PCIe NVMe M.2 SSD (depending on configuration)

• Capacity: Commonly 256 GB SSD or 500 GB/1 TB HDD

• Expandable: Supports up to 1 TB HDD or SSD

Display

• Size: 15.6 inches

• Resolution: Full HD (1920 x 1080) or HD (1366 x 768)

• Panel Type: Anti-glare (IPS on some models)

• Optional Touchscreen available on select configurations

Battery

• Type: 4-cell or 6-cell Lithium-Ion (varies)

• Capacity: Approximately 60 Wh (varies)

• Estimated Runtime: Around 8-10 hours (depends on usage)

Ports & Connectivity

• USB Ports:

  • 2 × USB 3.0

  • 2 × USB 2.0

• Video Output: HDMI, VGA

• Networking: RJ-45 Ethernet port

• Audio: Headphone/microphone combo jack

• Additional Ports: SD card reader, optional smart card reader, docking port

• Wireless: Intel Dual Band Wi-Fi, Bluetooth 4.1 or 4.2 (depending on config)

Audio & Webcam

• Speakers: Stereo speakers

• Microphone: Integrated microphone

• Webcam: HD webcam (720p)

Keyboard & Input

• Spill-resistant keyboard

• Standard touchpad with multi-touch gestures

• Optional backlit keyboard (depending on model)

Security Features

• TPM 2.0 (Trusted Platform Module)

• Optional fingerprint reader

• Optional smart card reader

Dimensions & Weight

• Dimensions: Approximately 38.0 x 25.6 x 2.54 cm

• Weight: Starting at about 2.1 kg (varies with configuration)

Operating System

• Pre-installed: Windows 10 Pro (some may have Windows 7 originally)

• Upgradeable to Windows 11 (depending on hardware compatibility)

Ideal Use Cases

• Business professionals needing reliable and durable laptops

• Mobile workers requiring longer battery life and connectivity options

• Corporate environments with emphasis on security and manageability

• Students and remote workers needing a robust laptop for productivity
